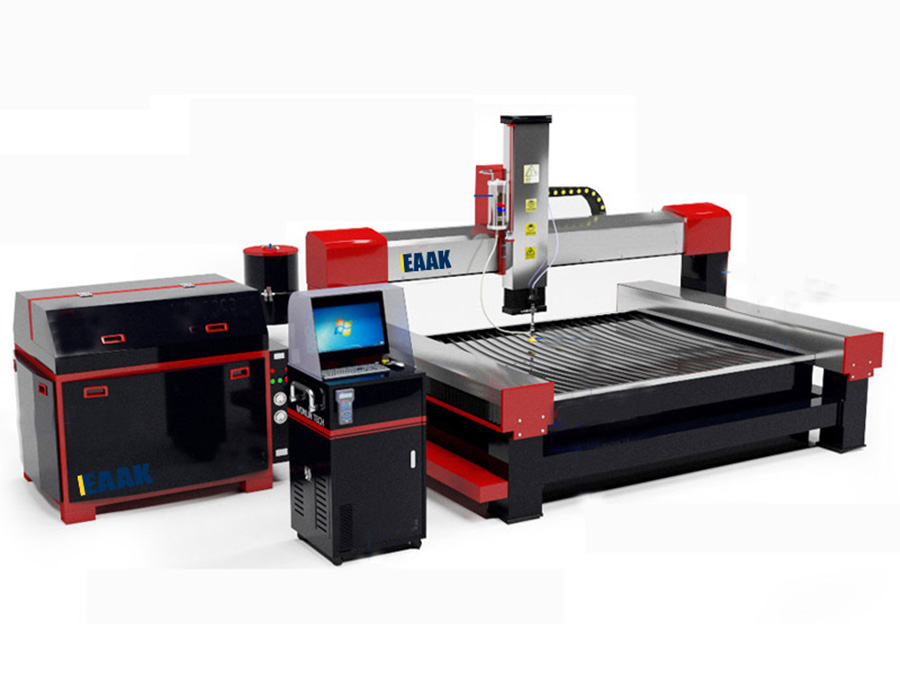

Standard Waterjet Cutting Machine

2030 waterjet machine

Model:EK2030N
Cutting size:2000mm*3000mm
UHP pump:420Mpa
Product description: water jet cutting machine,cnc waterjet,watet jet cnc metal cutting,
INQUIRY

EAAK new design water jet cutting machine EK2030N is with compelte new color and new structure design, it can save more space and works steady.

Structure type: Gantry steady structure.
1,Gantry type balance design bed,more firm and stable, with higher strength
2,The CNC motion mechanism and the worktable supporting the workpiece are split structures to prevent the impact of cutting water on the cutting accuracy during the cutting process
3,X, Y, Z directions adopt a new type of labyrinth protection sand and waterproof dual professional protection
4,X, Y directions use high-quality TBI turn nut ball screw and guide rail, heavy-duty support, to ensure parts processing accuracy, stable transmission, and durable. The Z-direction fully enclosed lifting mechanism is designed so that the sand and water splashed during the cutting process cannot erode the screw and the guide rail
5,Centralized automatic lubrication system to automate equipment maintenance.
6,The internal components are selected from Schneider International brand, with first-class quality and reliable work.
7,CNC control system: WASHING water cutting special control system
8.Drive power and motor: International famous brand Yaskawa YASKAWA AC servo drive power and motor

Specification of EAAK CNC water jet cutting machine:(as follows)

Model	EK3020N
X Y axis Working size	3000mm*2000mm
Z working height	150mm
Cutting Pressure	420Mpa 37kw UHP pump
Control accuracy	0.01mm
Cutting accuracy	0.1-0.2mm
Repositioning Accuracy	0.05mm
Max cutting thickness	300mm(depends on materials)
Max. moving speed	6000mm/min
Power supply	380V 50Hz
Environmental temperature	-10-50°C
Max flow rate	3.7L/min
Max oil discharge	206L/min
Max delivery capacity of oil pump	106L/min
Control system	Ncstudio (Shanghai) software IPC controller
CAD/CAM software	AutoCAD,ArtCAM
Drive motor	Japan Yaskawa servo drive motor
