Standard Waterjet Cutting Machine

2040 water cutting machine

Model:EK2040N
Cutting size:2000mm*4000mm
UHP pump:420Mpa
Application:Glass,Stone,Metal,Ceramic
Product description: Waterjet cutter for cnc cutting glass stone metal and ceramic
INQUIRY

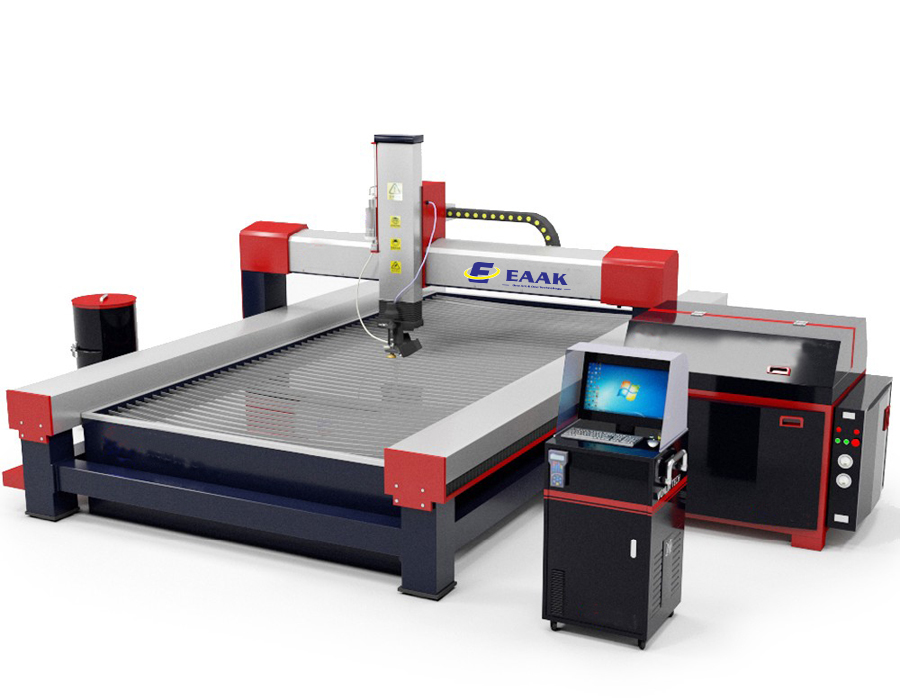

EAAK new design water jet cutting machine EK2040N is with compelte new color and new structure design, can save more space and works steady.
Specification of EAAK CNC water jet cutting machine:(as follows)

Model	EK2040N
X Y axis Working size	2000mm*4000mm
Z working height	150mm
Cutting Pressure	420Mpa 37kw UHP pump
Control accuracy	0.01mm
Cutting accuracy	0.1-0.2mm
Repositioning Accuracy	0.05mm
Max cutting thickness	300mm(depends on materials)
Max. moving speed	6000mm/min
Power supply	380V 50Hz
Environmental temperature	-10-50°C
Max flow rate	3.7L/min
Max oil discharge	206L/min
Max delivery capacity of oil pump	106L/min
Control system	Ncstudio (Shanghai) software IPC controller
CAD/CAM software	AutoCAD,ArtCAM
Drive motor	Japan Yaskawa servo drive motor
