Mini CNC waterjet cutter

  • 1010 small waterjet cutter
1010 small waterjet cutter

1010 small waterjet cutter

  • Model:EK1010N
  • Cutting size:1000mm*1000mm
  • UHP pump:420Mpa
  • Application:Glass,Stone,Metal,Ceramic
  • Product description: Waterjet cnc cutting machine standard model for cutting glass stone metal ceramic
  • INQUIRY

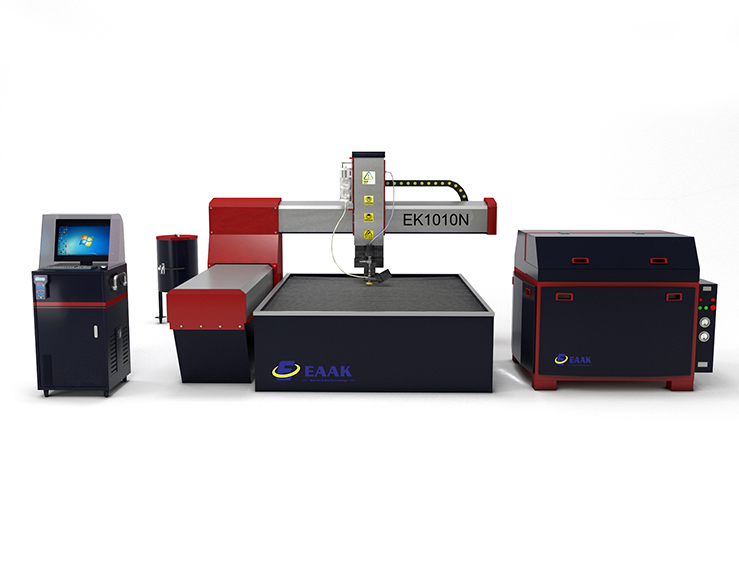

EAAK new design water jet cutting machine EK1010N is with compelte new color and new structure design, can save more space and works steady.

Specification of EAAK CNC water jet cutting machine:(as follows)

Model
EK1010N
X Y axis Working size
1000mm*1000mm
Z working height
150mm
Cutting Pressure
420Mpa 37kw UHP pump
Control accuracy
0.01mm
Cutting accuracy
0.1-0.2mm
Repositioning Accuracy
0.05mm
Max cutting thickness
150mm(depends on materials)
Max. moving speed
6000mm/min
Power supply
380V 50Hz
Environmental temperature
-10-50°C
Max flow rate
3.7L/min
Max oil discharge
206L/min
Max delivery capacity of oil pump
106L/min
Control system
Ncstudio (Shanghai) software IPC controller
CAD/CAM software
AutoCAD,ArtCAM
Driver motor
Japan Yaskawa servo drive motor

Parameters of CNC waterjet cutter working on different materials such as glass,metal,stone(as follows)

Materials
Thickness
Cutting speed (mm/min)
380Mpa 420Mpa 600Mpa
Normal glass cutting
6 mm
1400-1500
2100-2250
2520-2700
8 mm
690-800
1035-1200
1242-1440
19mm
400-500
600-750
950-1150
Granite panel cutting 20mm
260-300
390-450
468-540
30mm
170-200
255-300
306-360
Porcelain tile cutting 10mm
900-1000
1350-1500
1620-1800
Marble panel cutting 10mm
600-900
900-1350
1080-1620
20mm
350-400
526-600
630-720
30mm
260-300
390-450
468-540
Laminating glass cutting 21mm
490-600
735-900
882-1080
Sponge and foam cutting
20mm
6000-7000
9000-10500
10800-12600
50mm
2600-3000
3900-4500
4680-5400
80mm
1600-2000
2400-3000
2880-3600
Steel plate cutting
10mm
170-220
255-330
306-396
20mm
75-100
113-150
135-180
30mm
15-30
22-45
27-54
Stainless steel plate cutting
1mm
1000-1200
1500-1800
1800-2160
3mm 500-600
750-900
900-1080
6mm
240-300
360-450
432-540
10mm
150-180
225-270
270-324
16mm
85-100
128-150
153-180
20mm
70-80
105-120
126-144
30mm 30-40
45-60
54-72
Copper plate cutting
3 mm
1350-1500
2025-2250
2430-2700
5 mm
700-850
1050-1275
1260-1530
20mm
160-200
240-300
288-360
30mm
100-120
150-180
180-216
Titanium alloy cutting
13mm
100-115
150-173
180-207
