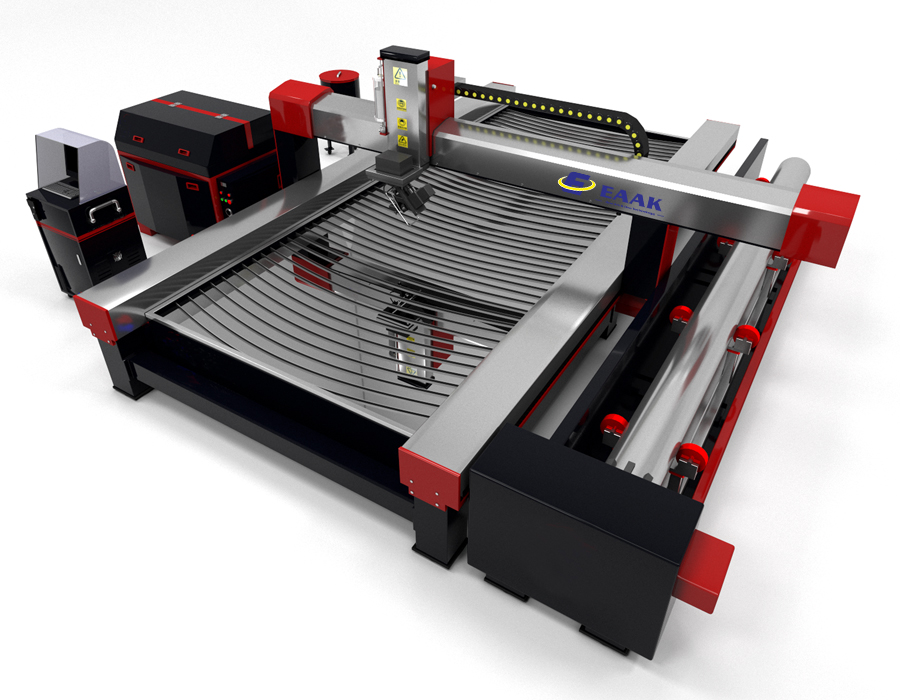

Standard Waterjet Cutting Machine

2030T Sheet & tube waterjet cut

Model:EK2030NT
Cutting size:2000mm*3000mm
UHP pump:420Mpa
Application:Glass,Stone,Metal,Ceramic
Product description: water jet cutting machine,cnc waterjet,watet jet cnc metal cutting,
INQUIRY

EAAK water jet cutter application:
Cutting materials are not limited (stainless steel, steel, copper, aluminum and other metals, glass steel, stone, glass, ceramics, plastics, composite materials...), waterjet cutting is currently the most applicable cutting process;

Metal cutting:
1	Decoration of stainless steel,aluminum.iron,brass and other metal cutting process.
2	Manufacture of machinery and equipment control cabinets such as food machinery,medical machinery,CNC machinery.
3	The metal parts cutting such as stainlesssteel flange,semi-finished,steel construction, non-ferrous metal and so on.
Glass cutting:
1	Gas stove surfaces, range hood,disinfecting cabinet, TV, bathroom products.
2	Construction and decoration glass,automotive glass.
Ceramic and stone cutting:
1	Ceramic cutting for decoration and construction.
2	Marble mosaic,granite mosaicmstone plate cutting.

Specification of EAAK CNC water jet cutting machine:(as follows)

Model	EK2030NT
X Y axis Working size	2000mm*3000mm
Z working height	150mm
Cutting Pressure	420Mpa 37kw UHP pump
Control accuracy	0.01mm
Cutting accuracy	0.1-0.2mm
Repositioning Accuracy	0.05mm
Max cutting thickness	300mm(depends on materials)
Max. moving speed	6000mm/min
Power supply	380V 50Hz
Environmental temperature	-10-50°C
Max flow rate	3.7L/min
Max oil discharge	206L/min
Max delivery capacity of oil pump	106L/min
Control system	Ncstudio (Shanghai) software IPC controller
CAD/CAM software	AutoCAD,ArtCAM
Drive motor	Japan Yaskawa servo drive motor
