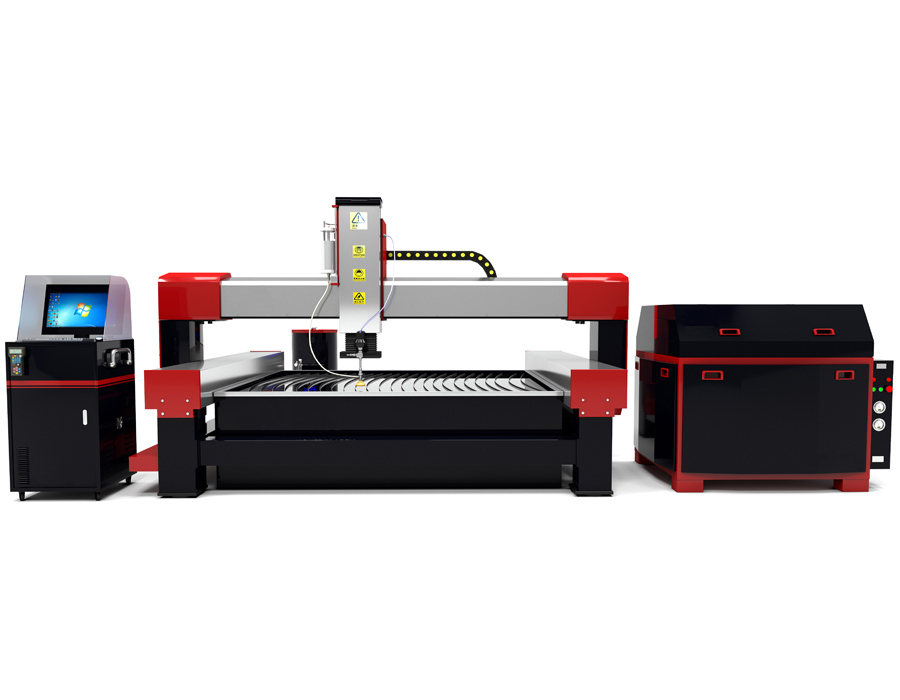

Standard Waterjet Cutting Machine

2060 big waterjet machine

Model:EK2060N
Cutting size:2000mm*6000mm
UHP pump:420Mpa
Application:Glass,Stone,Metal,Ceramic
Product description: Big waterjet cnc cutter and cnc water jet cutting glass stone metal ceramic
INQUIRY

EAAK CNC water jet cutter application:

The cutting materials are not limited (such as stainless steel,carbon steel,copper,brass,aluminum and other metal,glass,stone,marble,granite,foam,ceramics,plastics,composite materials...), waterjet cutting is currently the most applicable cutting method;

Metal cutting:

1	Decoration of stainless steel,aluminum.iron,brass and other metal cutting process.
2	Manufacture of machinery and equipment control cabinets such as food machinery,medical machinery,CNC machinery.
3	The metal parts cutting such as stainlesssteel flange,semi-finished,steel construction, non-ferrous metal and so on.

Glass cutting:

1	Gas stove surfaces, range hood,disinfecting cabinet, TV, bathroom products.
2	Construction and decoration glass,automotive glass.

Ceramic and stone cutting:

1	Ceramic cutting for decoration and construction.
2	Marble mosaic,granite mosaicmstone plate cutting.

Specification of EAAK CNC waterjet cutter machinery:(as follows)

Model	EK2060
X Y axis Working size	2000mm*6000mm
Z working height	150mm
Cutting Pressure	420Mpa 37kw UHP pump
Control accuracy	0.01mm
Cutting accuracy	0.1-0.2mm
Repositioning Accuracy	0.05mm
Max cutting thickness	100mm(depends on materials)
Max. moving speed	6000mm/min
Power supply	380V 50Hz
Environmental temperature	-10-50°C
Max flow rate	3.7L/min
Max oil discharge	206L/min
Max delivery capacity of oil pump	106L/min
Control system	Ncstudio (Shanghai) software IPC controller
CAD/CAM software	AutoCAD,ArtCAM
Drive motor	Japan Yaskawa servo drive motor
